high Ends Industry Camera USB3.0 Area Scan Cameras
Overview USB3.0 Area Scan Cameras Product Description Key Features Small size, 40g ultra-light weight Support USB3.0 Vis
Description
Basic Info.
| Model NO. | M3ST130M-H |
| Screen Type | HD Screen |
| Viewfinder Type | Electronic Viewfinder |
| External Flash | External Flash |
| Video Capture | Video Capture |
| Red-Eye Reduction | Red-Eye Reduction |
| WiFi | WiFi |
| Image Sensor | CCD |
| Memory Card Type | SD Card |
| Storage Temperature | -20c-60c |
| Operating Temperature | -10c-50c |
| Storage Humidity | 10-60%Rh |
| Power Supply | DC 5V Over PC USB Port |
| Operating Humidity | 30-80%Rh |
| Color Rendering Technique | Ultra Fine Color Engine |
| Cooling System | Natural |
| Recording System | Still Picture and Movie |
| White Balance | Roi White Balance/ Manual Temp-Tint Adjustment |
| Pixell | 3 Mega |
| Transport Package | Carton and Wooden |
| Specification | 0.5 |
| Trademark | flyingman |
| Origin | China |
| HS Code | 85258920 |
| Production Capacity | 1000pieces/Month |
Product Description

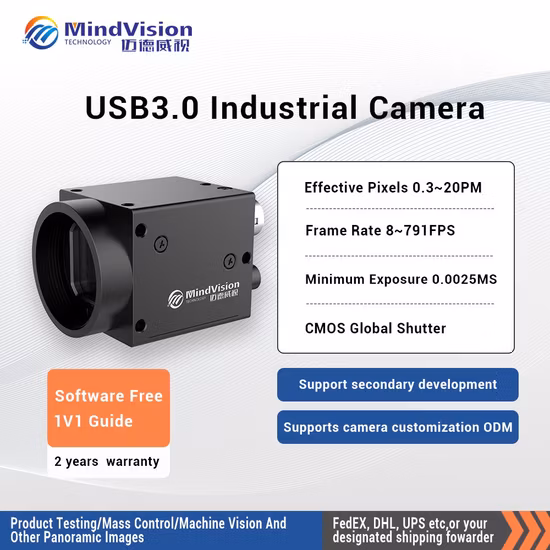

USB3.0 Area Scan Cameras
Product Description

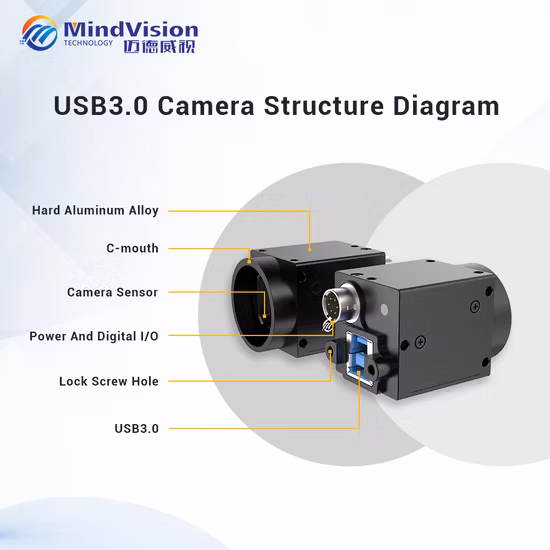

Key Features
Small size, 40g ultra-light weight
Support USB3.0 Vision, Maximum speed up to 440MByte/sLarge-capacity frame buffer, stable and reliable transmission
Ultra-low power consumption
lmage pre-processing in FPGA
.
Support GenICam, OpenCV, Halcon, LabView
Comply with CE,FCC,RoHS
Dimension:29 mm x 29 mm x 29 mm
Product Parameters
| M3ST130M-H | |||||||
| Resolution | BIN | SUM | Min ROI | Other Resolution | Target surface | Shutter type | Cell size |
| 1280x1024 | 640x512 213.94FPS | 640x512 213.94FPS | 144x8, min step 8 | 320x240 QVGA844.475 FPS1280x4 7487FPS1280x2 5615FPS | 1/2.7" | global shutter | 4.0um |
| Max frame rate | B&W/Color | Image size | Photosensitive area | Signal to noise ratio | Sensitivity | Bit depth | Trigger method |
| 213.9FPS | Black&white | 1280x1024 | 5.12mmx4.1mm | 40db | 8V/Lux.S | 10bit | Software/hardware |
| Dynamic Range | Spectral response | Exposure time | Gain range | Output image format | Photo Support Formats | Powered by | Power consumption |
| 60db | 390nm-1050nm | 4us-145ms 305us | Gain:1-3XStep:0.125 X | RAW8, RAW16, BGR24, MONO8, MONO16 | RAWBMP JPG PNG | USB 5V | Working:1.64WStand by:1.12W |
| Transmission interface | Dimensions | Operating temperature | Weight | Lens mount | IP protection class | Compatibility | Certification |
| USB3.0 | 29mm × 29mm × 29mm | -10 ºC - 50ºC | 40g | C mount | IP 30 | USB3.0 Vision, GenlCam, HALCON, LabView, OpenCV | CE, FCC, RoHS |
